The Moisture Problem

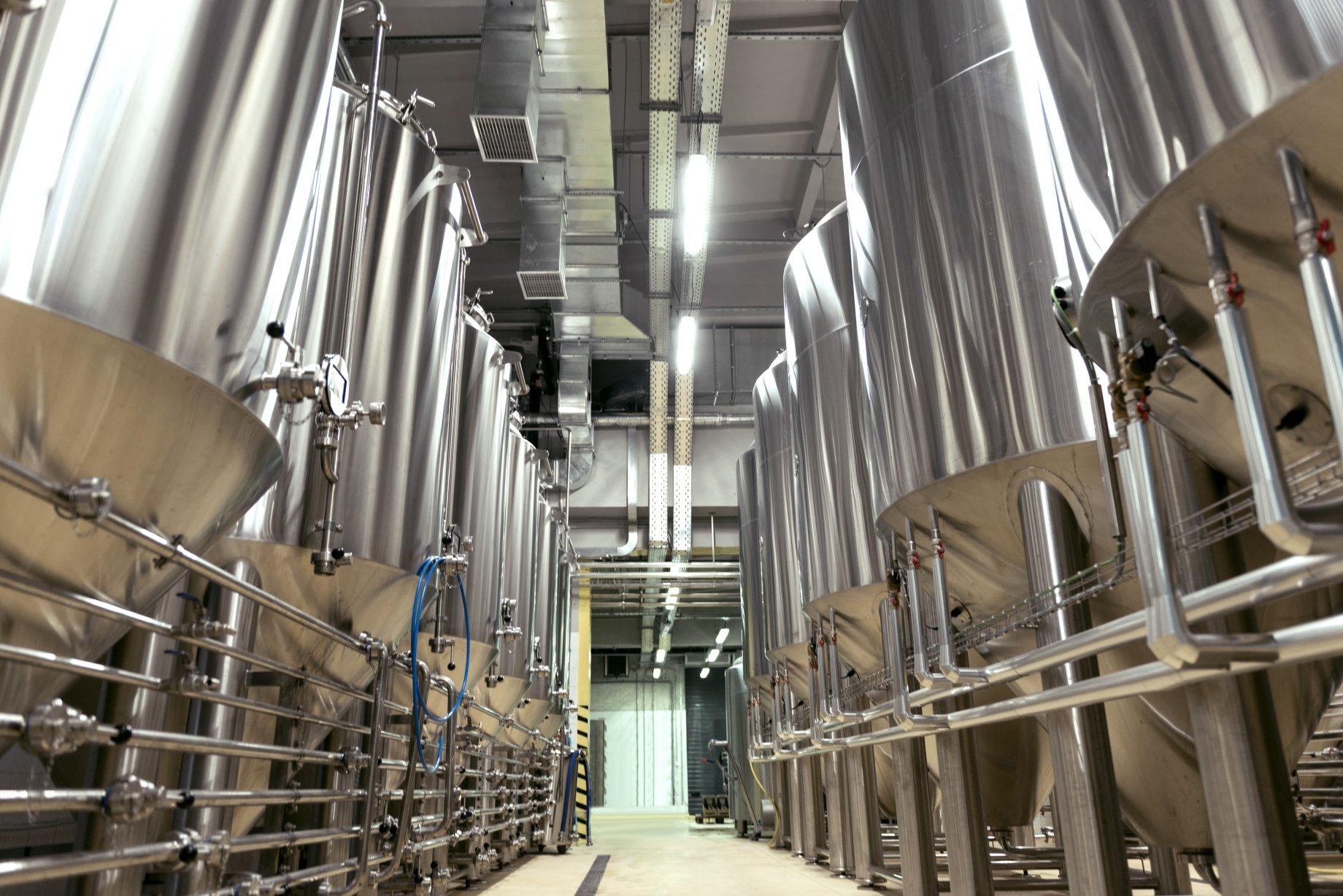

Breweries and beverage production facilities generate moisture at nearly every stage of production. Brewing vessels, open fermentation tanks, and bright beer tanks release CO2 and water vapor during active fermentation, driving room humidity to high levels in cellars and fermentation areas. Hot side brewing, including mash tuns and kettle boiling, generates substantial steam and vapor loads in the brewhouse. Packaging lines running cans, bottles, and kegs into cold product streams create condensation conditions wherever cold, wet containers contact warm, humid air. Steam sanitation and washdown operations saturate production areas with moisture, and space conditions must return to target before the next production cycle can begin.

The result in a typical brewery cellar is a persistent high-humidity environment where relative humidity routinely runs above 80 to 90 percent. At those levels, corrosion of exposed steel structure, piping hangers, electrical conduit, and overhead conveyors accelerates substantially. Carbon dioxide from fermentation is typically evacuated from the space, and the makeup air replacing it must come from somewhere. If that replacement air isn't humidity controlled, it introduces outdoor moisture directly into a cold environment where every surface is a condensation target. The combination of uncontrolled ventilation air, cold vessel surfaces, and persistent high humidity creates conditions for both corrosion and mold growth. Facilities operating without dedicated humidity control replace overhead structure, repaint ceiling steel, and chase corrosion-related electrical failures year after year without connecting the maintenance spend to the underlying atmospheric condition.

Condensation in packaging areas creates a different set of problems. Cold cans or bottles exiting pasteurizers or coolers have surface temperatures below the dewpoint of the surrounding air during warm, humid conditions. Condensate on packaging interferes with label adhesion, causes inkjet coding failures, and creates slip hazards on the production floor. Line downtime for label and coding failures directly reduces throughput at the highest-value point in the production process. The same condensation that's costing maintenance budget in the cellar is costing production throughput on the packaging floor.

Why Regular Air Conditioning Is Not Enough

Brewery environments present cooling-based dehumidification with several challenges that reduce its effectiveness. Cellars and fermentation areas are cold: glycol-cooled fermentation vessels typically hold beer at 50 to 68 degrees Fahrenheit for ale fermentation and 34 to 50 degrees Fahrenheit for lager fermentation, and the surrounding space temperature tracks that range. A cooling system removing humidity from a 45 degree Fahrenheit cellar must chill the process airstream below 45 degrees Fahrenheit to condense moisture. Many packaged units use hot gas reheat to bring that supply air back to delivery temperature, but the energy consumption stays disproportionate to the latent load removed, and the practical dew point floor of 40 to 45 degrees Fahrenheit limits how much moisture can actually be extracted.

Packaging areas create a different problem. Line runs are continuous during production, but sanitation and changeover periods interrupt production for hours at a time. During sanitation, steam and hot water generate the highest moisture loads of any event in the facility. A cooling system sized for steady-state production is inadequate during sanitation recovery, when the goal is to reduce humidity from post-sanitation peak levels to production-ready conditions before the next run begins. An undersized system extends sanitation recovery time, delays production starts, and effectively costs production hours on every sanitation cycle.

How Desiccant Dehumidifiers Remove Moisture

A rotary desiccant wheel removes moisture independently of temperature, which addresses the core limitation of cooling-based dehumidification in cold fermentation and cellar environments. In a 45-degree Fahrenheit fermentation cellar, the desiccant system delivers supply air at controlled dew points below the cellar temperature, preventing condensation on cold vessel surfaces, structural steel, and piping without overcooling the process airstream and reheating it back to delivery temperature. The moisture is adsorbed from the airstream and exhausted outside through the reactivation system, removing it from the building rather than circulating it.

For production and packaging areas, the critical requirement after sanitation is recovering space conditions quickly enough to prevent mold growth. Wet surfaces, warm air, and organic residue create ideal conditions for microbial colonization, and every hour the space remains at elevated humidity extends the exposure window. A desiccant system sized for sanitation recovery can return space conditions to production-ready levels within a defined time window, typically 30 minutes depending on sanitation method, space volume, and system sizing relative to the transient load. That recovery time is a design parameter, not a variable the facility discovers after the system is installed.

ASHRAE Applications (Chapter 12) identifies brewery and beverage production facilities as applications with humidity control needs that vary by zone, with fermentation areas and packaging areas requiring different control approaches. Desiccant dehumidification with zoned distribution serves both functions from a common system infrastructure.

How We Combine Cooling and Desiccant in One System

The standalone desiccant system approach adds electric or gas reactivation capacity sized to handle the full moisture load of each zone independently. That works, but it leaves energy on the table.

Desiccant Air Solutions builds self-contained hybrid units with a built-in DX pre-cooling coil and desiccant wheel in a single package. The DX coil pre-conditions the incoming process air before it reaches the desiccant wheel, reducing the moisture content by condensation at low cost per pound of moisture removed. This smaller moisture load entering the wheel allows lower reactivation temperature and smaller wheel size. An internal desuperheater recovers condenser heat from the unit's own refrigeration circuit and routes it directly to the reactivation airstream. When additional reactivation capacity is needed beyond recovered heat, the system can also draw from electricity, natural gas, steam, or hot water depending on the application. The integrated design produces consistent humidity control at a net operating cost substantially below a separately fueled standalone system. The system modulates from zero to full moisture removal capacity through bypass damper and variable reactivation control, responding to dew point sensor feedback and adjusting output to match changing production and infiltration loads without manual intervention.

Unlike catalog equipment designed for general-purpose dehumidification, Desiccant Air Solutions engineers each system for the specific brewery process conditions and moisture loads of the application. Wheel media selection, pre-cooling capacity, reactivation temperature, and control logic are all configured for the target environment rather than selected from a standard product line.

System controls use PID logic with dew point sensor feedback to modulate moisture removal continuously. Standard configurations include BMS integration for remote monitoring, alarm management, and setpoint adjustment.

Liquid desiccant systems offer specific advantages in brewery environments. Open fermentation tanks, large washdown areas, and high CO2 concentrations create conditions where liquid desiccant technology performs well: it can remove substantially more moisture during recovery periods than a rotary wheel of equivalent size, it can use lower-grade heat sources for regeneration rather than requiring a prime energy source, and it's not susceptible to degradation from carbonic acid created by elevated CO2 levels in cellar environments. Liquid desiccant systems also tend to require less ventilation air volume than dry wheel systems, which reduces the makeup air moisture load the system must handle. For breweries with steam generation infrastructure, low-grade steam or condensate return provides an available regeneration heat source at minimal incremental operating cost.

What to Think About When Sizing the System

Brewery dehumidification sizing requires treating fermentation and packaging zones separately because the moisture sources, temperatures, and control priorities are different in each. For fermentation cellars, the dominant loads are CO2-driven moisture release from open fermentation vessels, infiltration through doors between the cellar and adjacent spaces, and personnel during tank management operations. For packaging areas, the dominant loads are condensation-related moisture from cold product contact with humid air, personnel during production, and post-sanitation moisture loads.

For fermentation cellar sizing, calculate moisture evaporation from open fermentation vessels based on the total surface area of active fermenters and bright beer tanks, the fermentation temperature, and the temperature differential between the tank liquid and the room air. A practical starting point: a 100-barrel open fermentation vessel during active fermentation can contribute 20 to 50 pounds of moisture per hour, depending on fermentation activity and room conditions. Sum vessel contributions, add infiltration and personnel loads, and size the system to maintain the target dew point at the worst-case combination of those loads.

Facility Zone	Temperature Range	Target RH	Key Moisture Sources
Brewhouse (hot side)	65–85°F	50–65% during production	Kettle steam, mash moisture, personnel
Fermentation cellar	35–68°F	60–75% max	Vessel evaporation, CO2 release, infiltration
Bright beer / conditioning	32–50°F	65–75% max	Vessel moisture, infiltration, sanitation
Packaging line	55–70°F	45–60%	Cold product contact, personnel, OA
Sanitation recovery	Varies	Return to zone target	Steam and hot water sanitation residual

Size sanitation recovery capacity as an explicit design requirement, not a byproduct of steady-state sizing. The calculation starts with the wetted surface area after washdown: floors, walls, and equipment surfaces that retain a film of moisture. Floor material and slope affect film thickness, which determines the total volume of water the system must evaporate. Calculate the total wetted area, estimate the retained film thickness, and convert to pounds of moisture. The owner must then decide how quickly the space needs to recover. Thirty minutes is generally considered acceptable for the moisture to evaporate and the space to return to production-ready conditions, depending on sanitation method, space volume, and system sizing relative to the transient load. The primary goal is preventing mold growth: wet surfaces combined with warm air and organic residue create conditions where mold can establish in a short window, and the dehumidification system's recovery capacity is the engineering control that prevents it. For facilities with tight production schedules, sanitation recovery time directly determines how many production runs fit in a shift.

Why It Matters

Brewery humidity problems compound invisibly until the maintenance cost, production delay, or corrosion damage becomes undeniable. A desiccant dehumidification system integrated with existing glycol refrigeration infrastructure holds cellar and packaging area conditions continuously, recovers post-sanitation conditions predictably, and converts glycol condenser waste heat into free reactivation energy. The facilities that operate the best run the longest between major structural maintenance, lose the fewest production hours to environmental delays, and have packaging line uptime numbers that reflect controlled conditions rather than seasonal humidity variance. Contact Desiccant Air Solutions at [email protected] to discuss sizing, system configuration, and glycol integration options for your facility.
